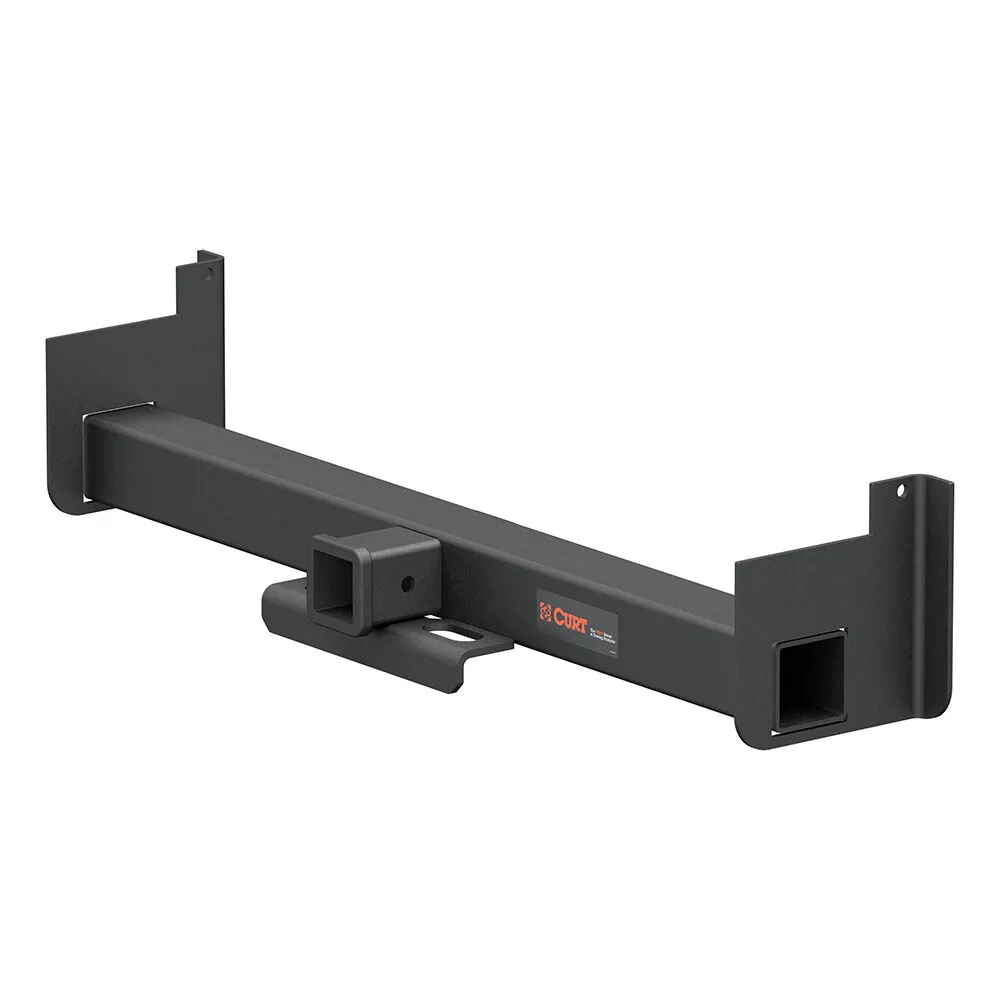

The CURT Weld-On Trailer Hitch is a unique towing option for your vehicle. As the name suggests, a weld-on hitch is designed to be welded directly onto the frame. While the installation of a weld-on hitch is far different from that of CURT custom hitches, weld-on hitches offer a high weight carrying capacity and a reliable towing solution when installed properly. This weld-on hitch comes in a three-piece design: a main body and two attachable side plates that allow the hitch to fit multiple vehicle frames.

Having a weight rating comparable to a class 5 trailer hitch, weld-on hitches work well on 1/2-ton, 3/4-ton, and 1-ton pickup trucks, including service body vehicles, and they are excellent for towing a variety of heavy-duty trailers, such as toy haulers, dump trailers, logging trailers, gravity boxes, and small yacht trailers. (NOTE: Never exceed the lowest weight capacity of any towing component.)

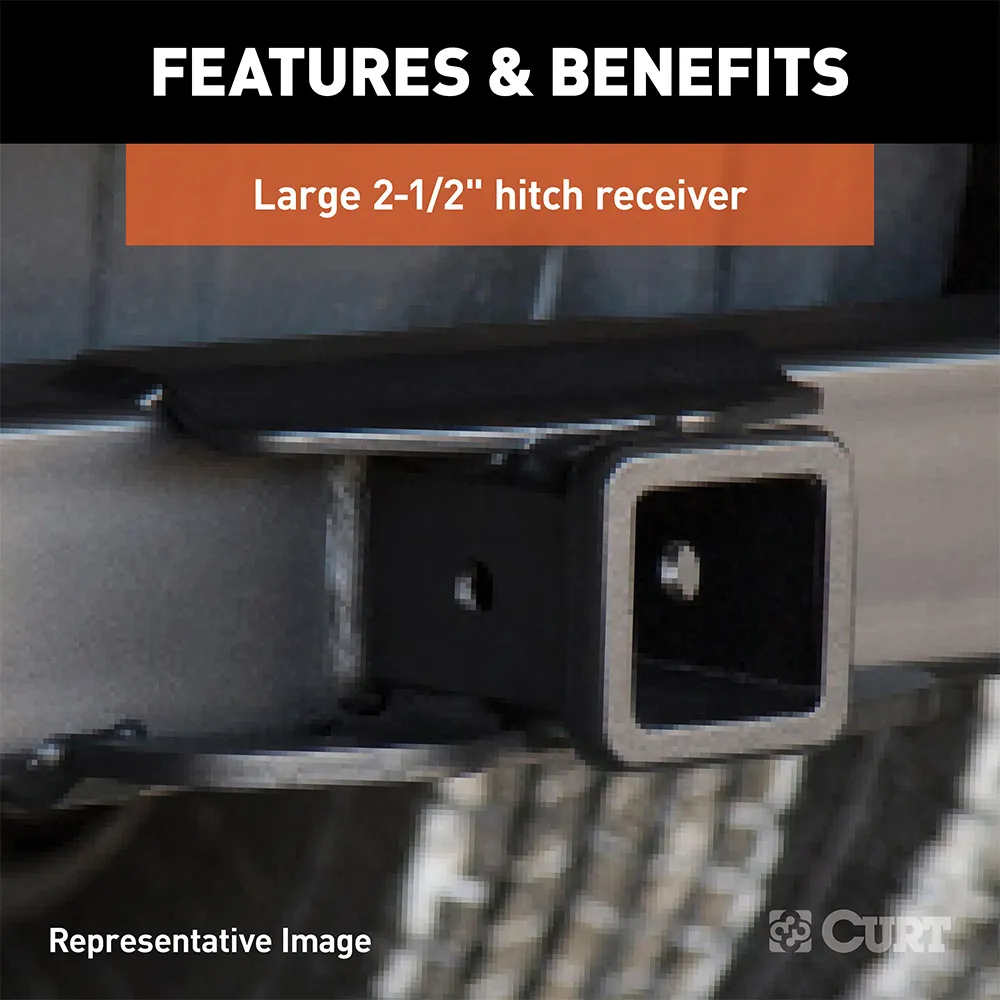

This particular weld-on hitch features a gross trailer weight capacity of up to 20,000 lbs. and a 2-1/2" x 2-1/2" receiver tube opening. It comes with a scratch-resistant and rust-resistant black powder coat finish and requires no hardware for installation. It is able to fit a frame up to 44" wide (to achieve 20K rating, plates need to be welded 42" wide or less).

• Adjustable frame fits a variety of vehicles (side plates do not come pre-welded)
• Fits truck frames up to 44" wide
• Rated as a class 5 hitch
• Tested for safety in accordance with SAE J684
• Great for use with utility boxes
• Protected by a highly black powder coat finish
• Co-cured in a rust-resistant liquid A-coat, inside and out
• Made in USA

NOTES
• Side plates must be welded 42" apart or less to achieve 20K rating
• Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities.
• Weld-on trailer hitches are not recommended for any electric vehicle (EV) applications.
• Adjustable side plates come detached from the main body of the hitch and must be welded on.

Specifications
Type Hitch: Weld-On
Finish: Gloss Black Powder Coat
Receiver Tube: 2-1/2"
Gross Trailer Weight: 20,000 lbs. CURT 15923 Universal Weld-On Trailer Hitch, 2-1/2" Receiver (Up to 44" Frames, 9" Drop)
