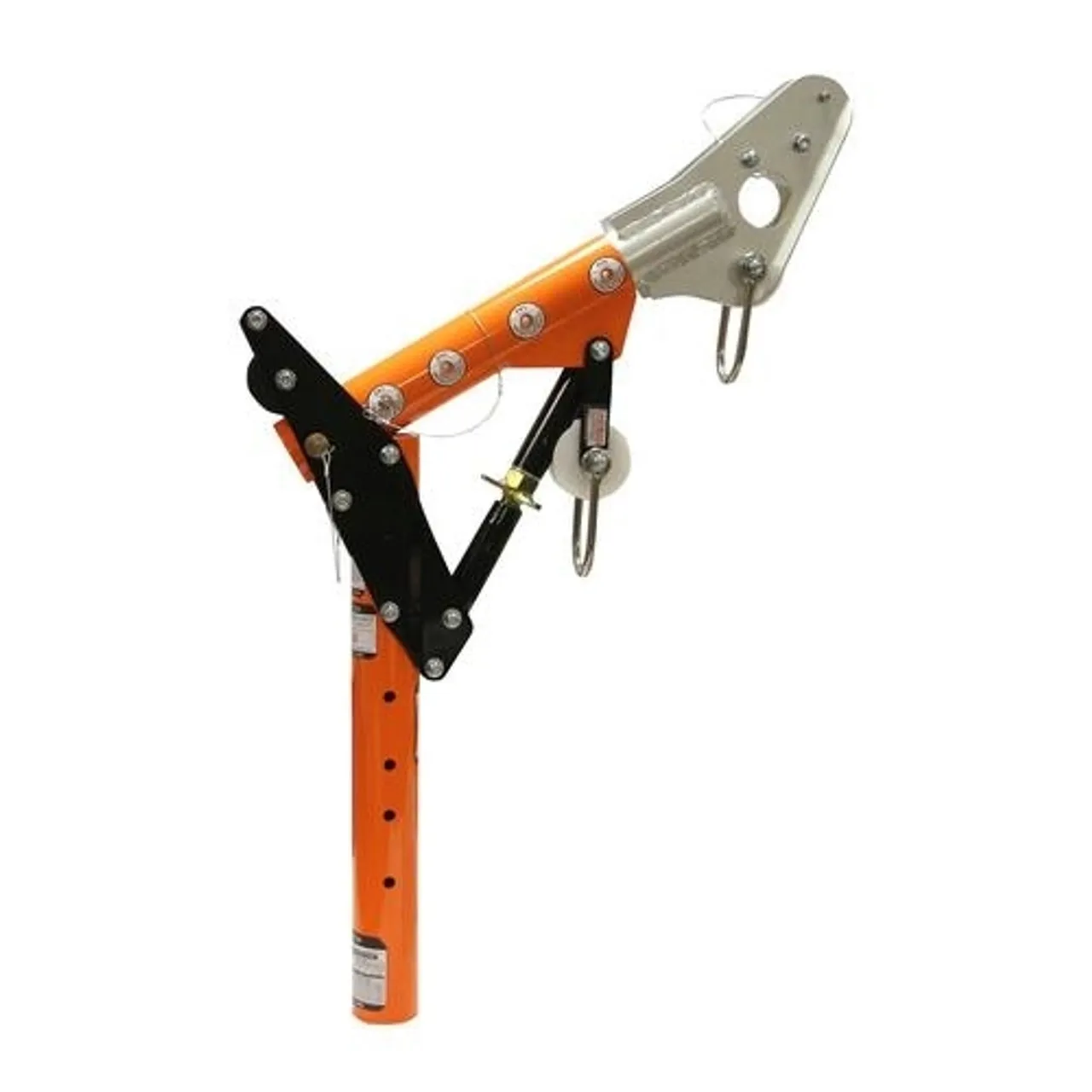

The Davit Arm is fully adjustable with its preset positions and the integral fine adjustment screw to always keep the anchor point centered over the access location. Offered as a separate component, the Davit Arm can be combined with a variety of mast extension lengths and fixed or portable bases to suit your specific applications.

Features:

• Davit Arm for use with Mast Extensions, 3pc Portable Base or Vehicle Hitch-mount Base plus Fixed Bases
• Features Telescoping adjustable reach from 12" to 29"
• Includes integral secondary anchor point for Fall Arrest and/or Rescue applications
• Features primary and secondary pulleys for use with multiple devices
• Integral Receiver Bracket accepts FallTech Winch and SRL-R devices

Specification:

• Moment Rated 5,750 lbs. Minimum
• Rescue Configuration 5,000 lbs. Minimum (2 Users Max. 310 lbs each)
• Entry/Egress Operation 1,800 lbs Minimum (1 User Max. 310 lbs)

Warnings:

Read, understand and follow all labels and  instructions prior to use.
Inspect before each use.
Remove from service if there is evidence of damage or excessive wear.
Remove from service if there is any signs of activation.
For use up to Max 2' below the user's dorsal D‐ring.

Sold/Each
