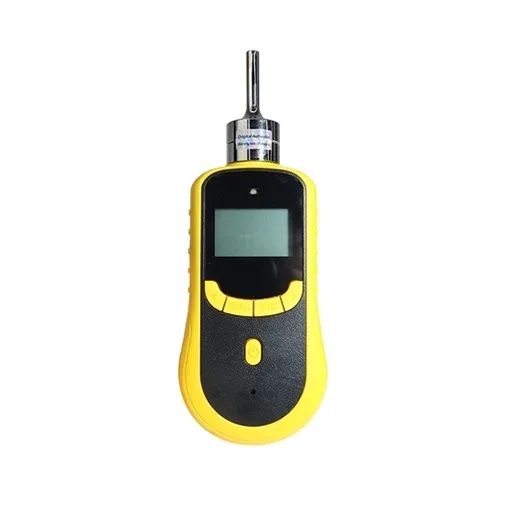

The handheld oxygen (O2) gas detector has a highly accurate electrochemical sensor that responds to changes in oxygen concentration in as little as 10 seconds, with a range of 0 to 30%/100% VoL options and a resolution of 0.01% VoL. A built-in data IC card with high speed USB transfer allows the user to download and print the data. IP66 protection and explosion-proof certification ensures safe use in a variety of environments.
Specification
| Model |
GD200-O2 |
| Sampling Method |
Pumping suction, flow rate can be up to 750ml/min |
| Detection Principle |
Electrochemistry |
| Gas |
Oxygen (O2) |
| Range (Optional) |
0 to 30%Vol, 0 to 100%Vol |
| Resolution |
0.01% Vol |
| Accuracy |
≤±3% F.S. |
| Responce Time |
≤10s |
| Repeatability |
≤±1% |
| Recovery Time |
≤10s |
| Linearity Error |
≤±1% |
| Zero Shift |
≤±1% (F.S./year) |
| Data Logging (Optional Function) |
High speed data transmission by USB, available for data downloading and printing (The built-in IC card has about 2G memory, which can record 100,000 sets of data.) |
| Alarms |
Sound, light and vibration |
| Display |
LCD dot matrix display |
| Language |
Chinese/English |
| Battery |
3.7V rechargeable lithium battery, 3.7 Watt
(Charger included: Input AC 100-240V 50/60Hz with optional USA, Europe or UK plug) |
| Operating Time |
100h (Pump off) |
| Communication |
Mini USB interface supports standard MODBUS communication protocol |
| Explosion-proof Grade |
Ex ia llC T4 |
| Case Material |
ABS+PC |
| Protection Grade |
IP66 |
| Certification |
CE, ATEX |
| Operating Temperature |
-20℃~50℃ |
| Operating Humidity |
0~95%RH (non-condensing) |
| Operating Pressure |
0.8~1.2bar |
| Dimension |
205*75*32mm |
| Weight |
300g |
| Warranty |
12 months |
| Extension Probe |
About 480mm (Total Length), About 300mm (Probe Head) |
Portable Gas Monitor User Manual
- Tool Gas Monitor User Manual.pdf
- Tool Gas Monitor Data Downloading Operation Instruction.pdf
Communication Protocol
- Tool Handheld Gas Monitor Communication Protocol V1.0.pdf
Portable Gas Monitor Calibration Accessories - Gas Pressure Regulator
- Tool Single Stage Pressure Regulator User Manual
Gas Detector Software
- Tool Portable Gas Monitor DataExport Software
Portable O2 Gas Monitor Features
- Original imported high-precision sensors to ensure the accuracy and reliability of the test results.
- Fast data transfer via USB interface with optional download and print functions.
- Multi-functional display interface with optional display of gas type, concentration, maximum value, local time and ambient temperature.
- Operation interface with multi-language support, easy switching and friendly user experience.
- Built-in miniature sampling pump, suction power can be adjusted in ten gears, and with explosion-proof qualified certification, excellent safety performance.
Gas Monitor Functions
- Real-time monitoring of gas concentration in the environment or confined space, with automatic alarm for exceeding the standard.
- Built-in self-calibration function and zero calibration function ensure accurate and reliable monitoring.
- One key to restore the factory settings, to avoid the trouble caused by misoperation.
- Equipped with temperature and pressure compensation function, adapting to gas monitoring under different environmental conditions.
- Dual-stage sound and light alarm system, alarm point can be customized, flexible response to various situations.
- Built-in high-capacity lithium polymer rechargeable battery, providing long life.
- Adopt pump suction sampling mode, adjustable suction force to ensure accurate sampling.
- Made of special engineering plastics with anti-slip, waterproof, dustproof and explosion-proof features.
Portable Oxygen Gas Monitor Details
Applications
Tips: How does this oxygen detector perform data logging?
This gas detector has a built-in memory of about 2G IC card, which can record up to 100,000 sets of data. The data logging function is optional, and users can download the data to a PC for analysis and printing through the USB high-speed data transfer interface. In addition, the device supports the standard MODBUS communication protocol, which facilitates integration with other devices or systems for real-time monitoring and data management.
