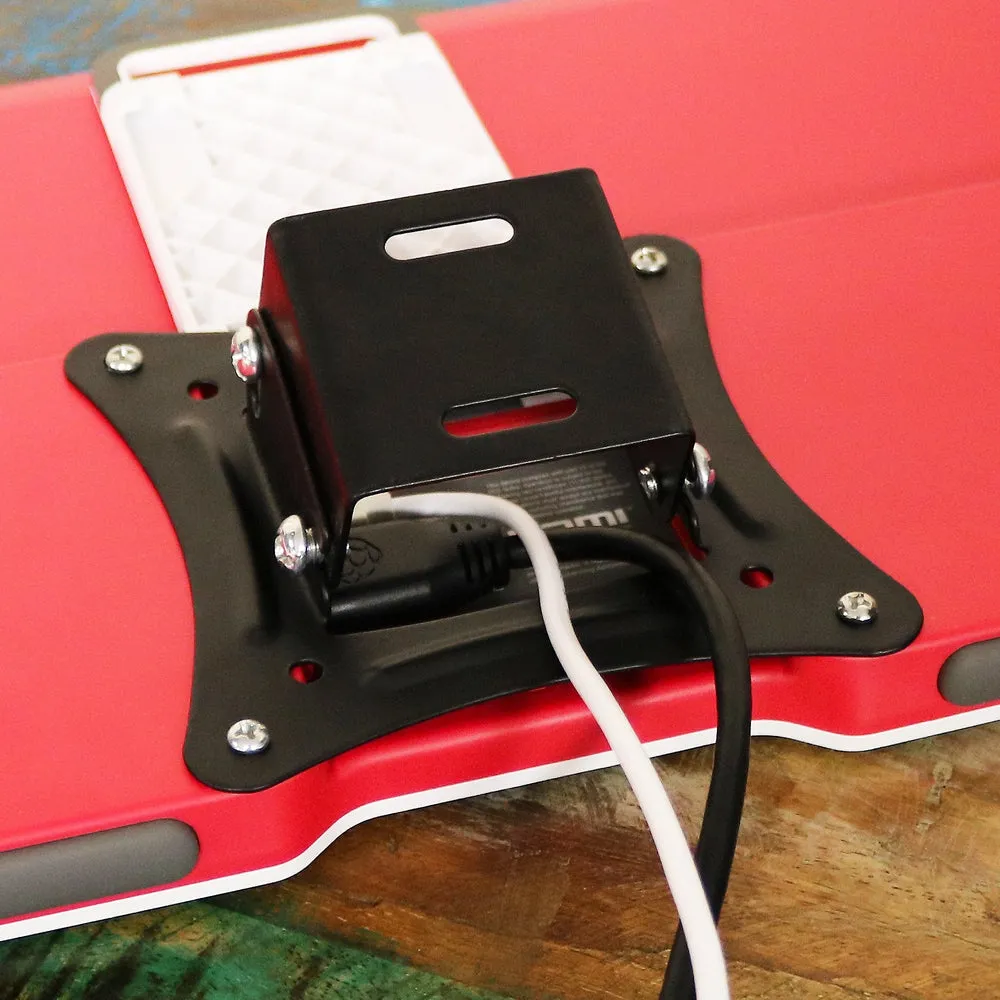

The Raspberry Pi Monitor includes 100mm VESA mounting points to allow you to mount it to a wall, and this super-simple, super-affordable bracket lets you do just that, with horizontal angle adjustment too!
This bracket gives you the option to have the screen perfectly horizontal, or with a slight upward or downward angle - depending on which way you mount it. Sideways (left/right) adjustment is not possible.
Cables pass through the central cut-out section from your device to your Raspberry Pi Monitor.
Great for your office, workshop, garage, server room and anywhere else you plan to use the Raspberry Pi Monitor! Also works with other 100mm and 75mm VESA displays.
Raspberry Monitor not included.
Features
- VESA mounting bracket for Raspberry Pi Monitor
- 100mm + 75mm VESA mount
- Horizontal angle adjustment
- Full metal construction
- Fixings included
- Works with other 100mm and 75mm VESA displays
Assembly
- Remove the four screws from the mount, to separate the smaller wall plate from the VESA section
- Mount the wall plate to your wall using the included plugs and fixings (or use your own, depending on the material you're mounting to)
- Looking at the VESA section, decide whether you need upward or downward angle adjustment, as this determines which way you should assemble the VESA part to your monitor
- Flip the monitor's stand up
- Pass your power/HDMI cables through the VESA plate central hole
- Attach the VESA backing part to the monitor
- Fit the monitor to the mount using the four screws removed earlier
Package Contents
- 1x VESA Wall Mount for Raspberry Pi Monitor
Raspberry Pi Monitor not included
VESA Wall Mount for Raspberry Pi Monitor
